Planetary Roller Screw (SLV SERIES)

Planetary Roller Screw (SLV SERIES)

Inquire Now

Description:

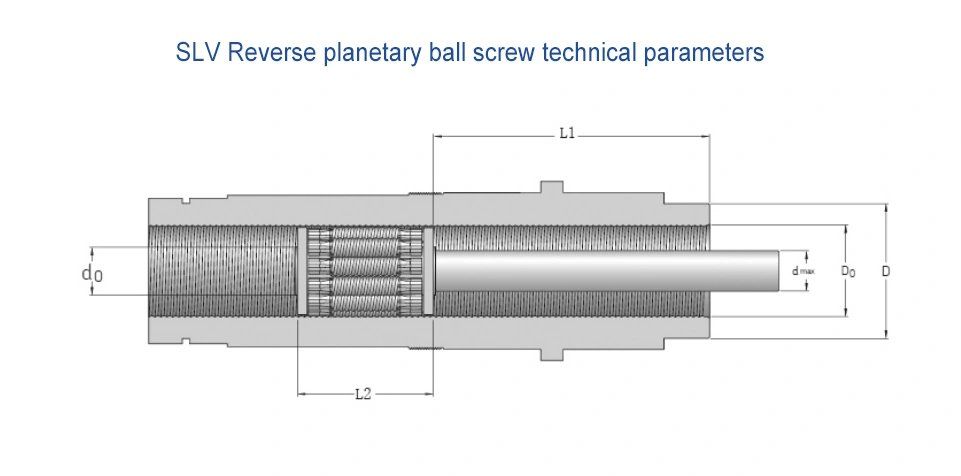

SLV SERIES

View File

Model	Diameter D* Lead(p)	Quantity(N)	Nominal Diameter (d0)	Dynamic load (C)	Static load (C0)	η	η	D0	D Standard diameter	dmax	L1	L2
Model	Diameter D* Lead(p)	Quantity(N)	mm	KN	KN	-		KN	mm	mm	mm	mm
SLV180204	18*2.4	3	18	25. 6	59.9	0. 69	0.55	30	38	16	65	50
SLV1803	18*3	3	18	27. 8	60.9	0. 73	0. 63	30	38	16	60	50
SLV180405	18*4.5	3	18	26. 6	51.2	0. 77	0. 7	30	38	16	55	50
SLV1806	18*6	3	18	30. 4	51.9	0. 82	0. 78	30	38	16	45	50
SLV210204	21*2.4	3	21	45. 5	92	0. 66	0.48	35	45	18	84	56
SLV2103	21*3	3	21	49. 6	95	0. 7	0.57	35	45	18	79	56
SLV210405	21*4.5	3	21	53. 3	94	0. 75	0. 67	35	45	18	74	56
SLV2106	21*6	3	21	54. 2	82. 2	0. 8	0. 75	35	45	18	64	56
SLV240204	24*2. 4	3	24	53. 7	108	0. 63	0.41	40	50	21	210	65
SLV2403	24*3	3	24	57. 2	109	0. 68	0.53	40	50	21	170	65
SLV240405	24*4. 5	3	24	62	109	0. 73	0. 63	40	50	21	110	65
SLV2406	24*6	3	24	64. 5	99	0. 79	0. 73	40	50	21	75	65
SLV240204	30*2. 4	3	30	83. 2	185	0.58	0. 28	50	60	27	210	75
SLV3003	30*3	3	30	89. 2	188	0. 63	0.41	50	60	27	210	75
SLV300405	30*4. 5	3	30	95	184	0. 69	0.55	50	60	27	210	75
SLV3006	30*6	3	30	98	190	0. 76	0. 68	50	60	27	200	75
SLV39024	39*2. 4	3	39	125	301	0.52	0. 08	65	75	36	195	90
SLV3903	39*3	3	39	133	301	0.57	0. 25	65	75	36	195	90
SLV390405	39*4. 5	3	39	143	302	0. 64	0.44	65	75	36	195	90
SLV3906	39*6	3	39	159	304	0. 72	0. 61	65	75	36	195	90
SLV480204	48*2. 4	3	48	209	564	0.47	0. 08	80	90	44	171	114
SLV4803	48*3	3	48	221	567	0.52	0. 08	80	90	44	171	114
SLV480405	48*4. 5	3	48	234	557	0.59	0. 31	80	90	44	171	114
SLV4806	48*6	3	48	259	559	0. 68	0.53	80	90	44	171	114
SLV6003	60*3	3	60	452	1205	0.47	0. 08	100	115	55	210	160
SLV60405	60*4. 5	3	60	476	1117	0.54	0. 25	100	115	55	210	160
SLV6006	60*6	3	60	487	1208	0. 63	0. 31	100	115	55	200	160
SLV6009	60*9	3	60	495	1210	0. 72	0.53	100	115	55	200	160

Note: Axial spacing can be reduced upon request
