Grinded Miniature Ball Screw

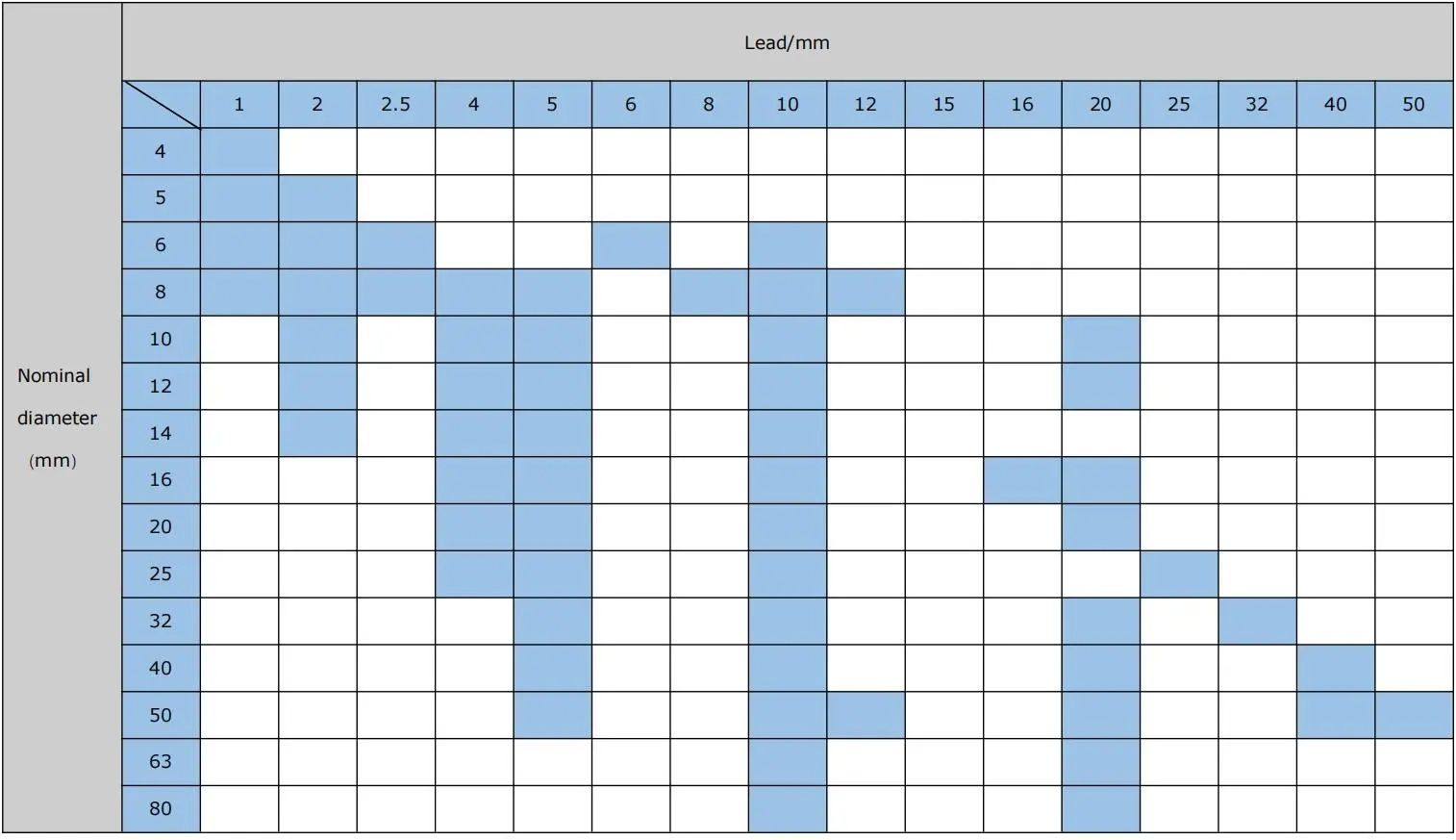

Ball Screw Assemblies Basic Nominal Diameter and Lead
Note:Other non-Standard shaft diameters and leads can be customized
● Customized Products ○
● Standard Products ●
● Other Customized shaft dia & lead

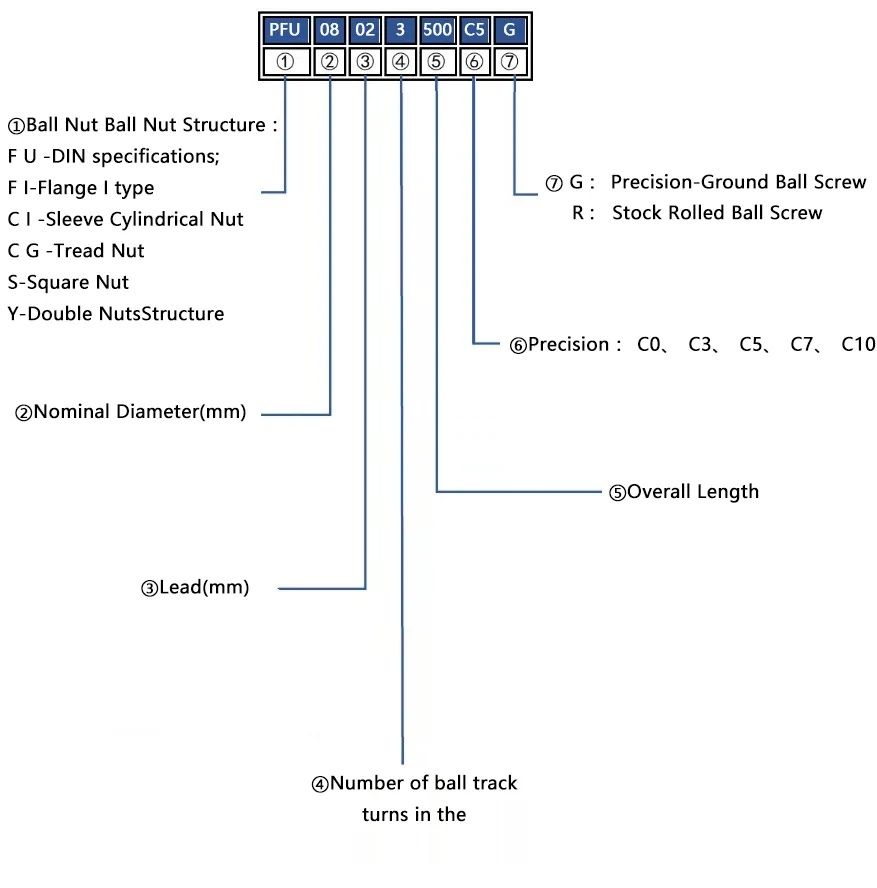

Module number notation
Princile of module number notation
I:Lead; Da:Ball Dia; n:Number of Circuits
Ca:Basic dynamic Rating Load(N)
Coa:Basic Static Rating Load(N)
|

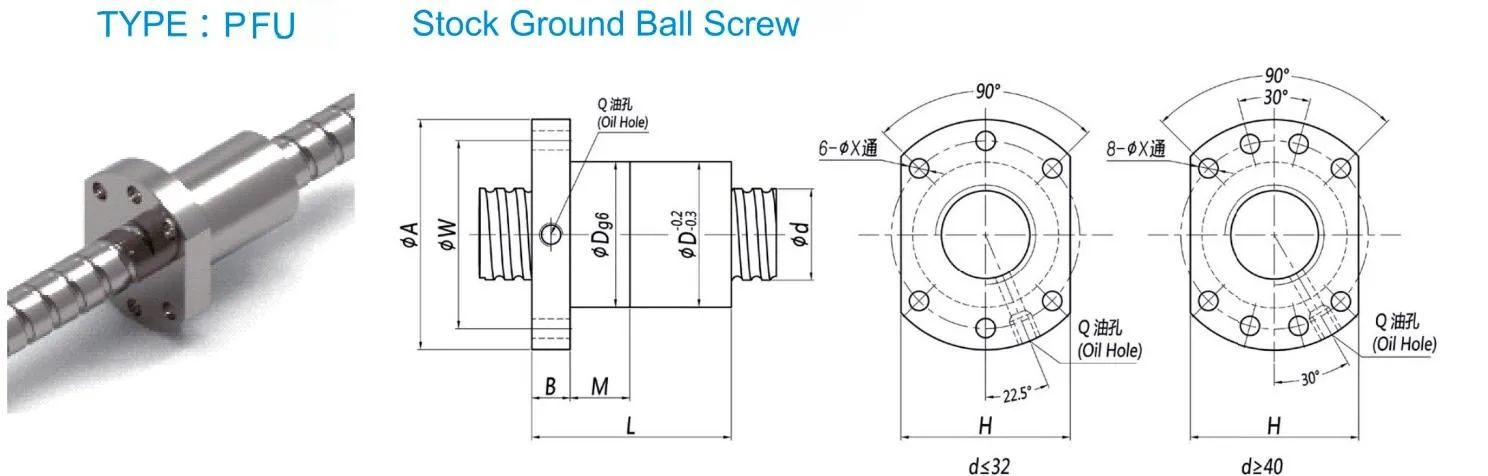

Model |
Dimensions |
|||||||||||
|
d |
I |
Da |
D |
A |
B |
L |
X |
H |
n |
Ca(N) |
Coa(N) |
|
|
PFU0401 |
4 |
1 |
0.8 |
10 |
20 |
3 |
12 |
2.9 |
14 |
3 |
420 |
570 |
|
PFU0501 |
5 |
1 |
0.8 |
10 |
20 |
3 |
12 |
2.9 |
14 |
3 |
500 |
700 |
|
PFU0502 |
5 |
2 |
1.2 |
10 |
20 |
3 |
16 |
3.4 |
14 |
3 |
660 |
1052 |
|
PFU0601 |
6 |
1 |
0.8 |
12 |
24 |
3.5 |
15 |
3.4 |
16 |
3 |
560 |
950 |
|
PFU0602 |
6 |
2 |
1.2 |
12 |
24 |
4 |
16 |
3.4 |
16 |
3 |
750 |
1200 |
|
PFU0801 |
8 |
1 |
0.8 |
14 |
27 |
4 |
16 |
3.4 |
18 |
3 |
650 |
1300 |
|
PFU0802 |
8 |
2 |
1.2 |
14 |
27 |
4 |
16 |
3.4 |
18 |
3 |
1300 |
2300 |
|
PFU0802.5 |
8 |
2.5 |
1.2 |
16 |
29 |
4 |
26 |
3.4 |
20 |
3 |
1345 |
2694 |
|
PFU0805 |
8 |
5 |
1.5875 |
18 |
31 |
4 |
28 |
3.4 |
22 |
3 |
1700 |
3458 |
|
PFU1002 |
10 |
2 |
1.2 |
18 |
35 |
5 |
28 |
4.5 |
22 |
3 |
1455 |
3275 |
|
PFU1004 |
10 |
4 |
2.0 |
26 |
46 |
10 |
34 |
4.5 |
28 |
3 |
2310 |
5261 |
|
PFU1202 |
12 |
1 |
1.2 |
20 |
37 |
5 |
28 |
4.5 |
24 |
4 |
2100 |
4900 |
|
PFU1204 |
12 |
4 |
2.5 |
24 |
40 |
6 |
28 |
4.5 |
26 |
3 |
4400 |
9000 |
|
PFU1205 |
12 |
5 |
2.5 |
24 |
37 |
8 |
39 |
4.5 |
24 |
3 |
4400 |
9000 |
|
PFU1402 |
14 |
2 |
1.2 |
21 |
40 |
6 |
23 |
5.5 |
26 |
4 |
2200 |
5700 |
|
PFU1602 |
16 |
2 |
12 |
25 |
43 |
10 |
40 |
5.5 |
29 |
4 |
2300 |
6700 |
|
PFU1605 |
16 |
5 |
3.175 |
28 |
48 |
10 |
50 |
5.5 |
40 |
4 |
10150 |
15390 |
|
PFU2005 |
20 |
5 |
3.175 |
36 |
58 |
10 |
51 |
6.6 |
44 |
4 |
11680 |
20120 |
|
PFU2010 |
20 |
10 |
3.175 |
36 |
58 |
10 |
53 |
6.6 |
44 |
3 |
9340 |
15800 |
|
PFU2505 |
25 |
5 |
3.175 |
40 |
62 |
10 |
51 |
6.6 |
48 |
4 |
13220 |
26060 |
|
PFU2510 |
25 |
10 |
4.762 |
42 |
64 |
12 |
67 |
6.6 |
50 |
3 |
17080 |
27830 |
|
PFU3205 |
32 |
5 |
3.175 |
50 |
80 |
12 |
52 |
9 |
62 |
4 |
14950 |
34390 |
|
PFU3210 |
31 |
10 |
3.969 |
50 |
80 |
12 |
70 |
9 |
62 |
4 |
19710 |
40590 |
|
PFU3210 |
32 |
10 |
6.35 |
53 |
83 |
12 |
70 |
9 |
65 |
3 |
27610 |
46170 |
|
PFU4010 |
40 |
10 |
6.35 |
63 |
93 |
14 |
85 |
9 |
70 |
4 |
40680 |
80500 |
|
PFU4020 |
38 |
20 |
6.35 |
65 |
95 |
14 |
90 |
9 |
72 |
3 |
30470 |
56240 |
|
PFU5010 |
50 |
10 |
6.35 |
75 |
110 |
16 |
93 |
11 |
85 |
4 |
46050 |
104250 |
I:Lead; Da:Ball Dia; n:Number of Circuits
Ca:Basic dynamic Rating Load(N）
Coa:Basic Static Rating Load(N)
|

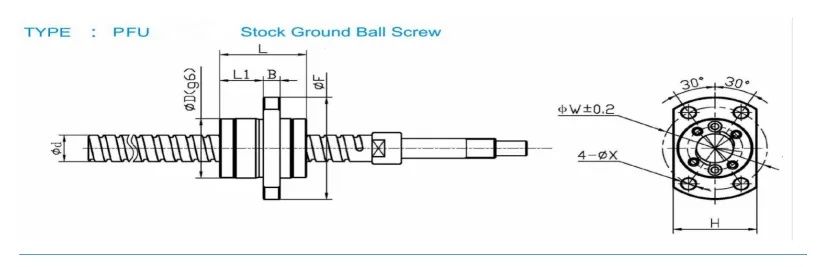

Model |
Dimensions |
||||||||||||
|
d |
P |
Da |
D |
F |
B |
L |
W |
H |
X |
n |
Ca(N) |
Coa(N) |
|
|
PFU0606 |
6 |
6 |
1.2 |
14 |
17 |
4 |
17 |
21 |
16 |
3.4 |
1.6x2 |
1260 |
2130 |
|
PFU0610 |
6 |
10 |
1.2 |
14 |
27 |
4 |
23 |
21 |
16 |
3.4 |
1.2x2 |
950 |
1600 |
|
PFU0804 |
8 |
4 |
1.5875 |
16 |
29 |
4 |
21.9 |
23 |
20 |
3.4 |
1.6x2 |
1714 |
2763 |
|
PFU0808 |
8 |
8 |
1.5875 |
18 |
31 |
4 |
20 |
25 |
20 |
3.4 |
1.6x2 |
2200 |
3800 |
|
PFU0810 |
8 |
10 |
1.5875 |
18 |
31 |
4 |
25 |
25 |
20 |
3.4 |
1.6x2 |
2200 |
3800 |
|
PFU0812 |
8 |
12 |
1.5875 |
18 |
31 |
4 |
28 |
25 |
20 |
3.4 |
1.6x2 |
2200 |
4000 |
|
PFU1010 |
10 |
10 |
2 |
23 |
40 |
5 |
24 |
32 |
25 |
4.5 |
1.6x2 |
3300 |
5980 |
|
PFU1015 |
10 |
15 |
2 |
23 |
40 |
5 |
33 |
32 |
25 |
4.5 |
1.6x2 |
3300 |
5980 |
|
PFU1020 |
10 |
20 |
2 |
23 |
40 |
5 |
42 |
32 |
25 |
4.5 |
1.6x2 |
3300 |
5980 |
|
PFU1210 |
12 |
10 |
2 |
24 |
41 |
6 |
24 |
33 |
26 |
4.5 |
1.7x2 |
4200 |
8900 |
|
PFU1220 |
12 |
20 |
2.5 |
24 |
41 |
6 |
50 |
33 |
26 |
4.5 |
1.7x2 |
4500 |
9300 |
I:Lead; Da:Ball Dia; n:Number of Circuits
Ca:Basic dynamic Rating Load(N)
Coa:Basic Static Rating Load(N)
|

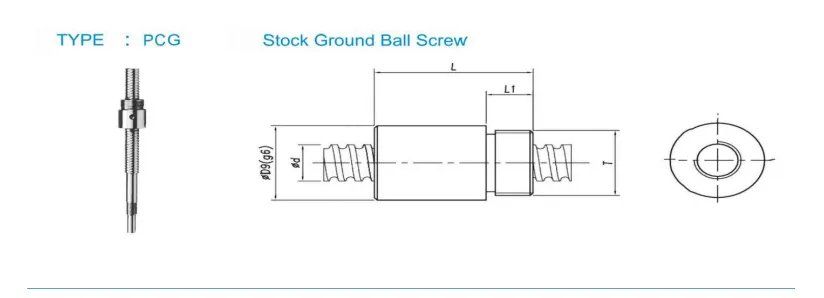

Model |
Dimensions |
|||||||||
|
d |
I |
Da |
D |
L |
L1 |
T |
n |
Ca(N) |
Coa(N) |
|
|
PCG0401 |
4 |
1 |
0.8 |
10 |
15 |
5 |
M8x0.75 |
3 |
420 |
570 |
|
PCG0501 |
5 |
1 |
0.8 |
12 |
15 |
5 |
M10x1 |
3 |
500 |
700 |
|
PCG0502 |
5 |
2 |
1.2 |
12 |
20 |
6 |
M10x1 |
3 |
660 |
1052 |
|
PCG0601 |
6 |
1 |
0.8 |
12 |
20 |
6 |
M10x1 |
3 |
560 |
950 |
|
PCG0602 |
6 |
2 |
1.2 |
12 |
20 |
6 |
M10x1 |
3 |
750 |
1200 |
|
PCG0801 |
8 |
1 |
0.8 |
16 |
22 |
8 |
M14x1 |
3 |
650 |
1300 |
|
PCG0802 |
8 |
2 |
1.2 |
16 |
27 |
8 |
M14x1 |
3 |
1300 |
2300 |
|
PCG0802.5 |
8 |
2.5 |
1.2 |
16 |
29 |
8 |
M14x1 |
3 |
1345 |
2694 |
|
PCG0804 |
8 |
4 |
1.588 |
18 |
34 |
8 |
M16x1 |
3 |
1714 |
3480 |
|
PCG0805 |
8 |
5 |
1.588 |
18 |
34 |
8 |
M16x1 |
3 |
1700 |
3458 |
|
PCG1002 |
10 |
2 |
1.2 |
20 |
22 |
7.5 |
M18x1 |
3 |
1455 |
3275 |
|
PCG1004 |
10 |
4 |
2.0 |
26 |
34 |
10 |
M18x1 |
3 |
2310 |
5261 |
|
PCG1202 |
12 |
2 |
1.2 |
20 |
28 |
10 |
M18x1 |
4 |
2100 |
4900 |
|
PCG1204 |
12 |
4 |
2.5 |
24 |
38 |
10 |
M20x1 |
3 |
4400 |
9000 |
|
PCG1205 |
12 |
5 |
2.5 |
24 |
38 |
10 |
M20x1 |
3 |
4400 |
9000 |
|
PCG1402 |
14 |
2 |
1.2 |
24 |
38 |
10 |
M20x1 |
4 |
2200 |
5700 |
I:Lead; Da:Ball Dia; n:Number of Circuits
Ca:Basic dynamic Rating Load(N)
Coa:Basic Static Rating Load(N)
|
Model |
Dimensions |
|||||||||
|
d |
I |
Da |
D |
L |
L1 |
T |
n |
Ca(N) |
Coa(N) |
|
|
PCG0401 |
4 |
1 |
0.8 |
10 |
15 |
5 |
M8x0.75 |
3 |
420 |
570 |
|
PCG0501 |
5 |
1 |
0.8 |
12 |
15 |
5 |
M10x1 |
3 |
500 |
700 |
|
PCG0502 |
5 |
2 |
1.2 |
12 |
20 |
6 |
M10x1 |
3 |
660 |
1052 |
|
PCG0601 |
6 |
1 |
0.8 |
12 |
20 |
6 |
M10x1 |
3 |
560 |
950 |
|
PCG0602 |
6 |
2 |
1.2 |
12 |
20 |
6 |
M10x1 |
3 |
750 |
1200 |
|
PCG0801 |
8 |
1 |
0.8 |
16 |
22 |
8 |
M14x1 |
3 |
650 |
1300 |
|
PCG0802 |
8 |
2 |
1.2 |
16 |
27 |
8 |
M14x1 |
3 |
1300 |
2300 |
|
PCG0802.5 |
8 |
2.5 |
1.2 |
16 |
29 |
8 |
M14x1 |
3 |
1345 |
2694 |
|
PCG0804 |
8 |
4 |
1.588 |
18 |
34 |
8 |
M16x1 |
3 |
1714 |
3480 |
|
PCG0805 |
8 |
5 |
1.588 |
18 |
34 |
8 |
M16x1 |
3 |
1700 |
3458 |
|
PCG1002 |
10 |
2 |
1.2 |
20 |
22 |
7.5 |
M18x1 |
3 |
1455 |
3275 |
|
PCG1004 |
10 |
4 |
2.0 |
26 |
34 |
10 |
M18x1 |
3 |
2310 |
5261 |
|
PCG1202 |
12 |
2 |
1.2 |
20 |
28 |
10 |
M18x1 |
4 |
2100 |
4900 |
|
PCG1204 |
12 |
4 |
2.5 |
24 |
38 |
10 |
M20x1 |
3 |
4400 |
9000 |
|
PCG1205 |
12 |
5 |
2.5 |
24 |
38 |
10 |
M20x1 |
3 |
4400 |
9000 |
|
PCG1402 |
14 |
2 |
1.2 |
24 |
38 |
10 |
M20x1 |
4 |
2200 |
5700 |
I:Lead; Da:Ball Dia; n:Number of Circuits
Ca:Basic dynamic Rating Load(N)
Coa:Basic Static Rating Load(N)
Unit:mm
|
Model |
Dimensions |
|||||||||||
|
d |
I |
Da |
D |
A |
B |
M |
L |
H |
n |
Ca(N) |
Coa(N) |
|
|
PYFU1605 |
16 |
5 |
3.175 |
28 |
48 |
10 |
12 |
100 |
40 |
4 |
10150 |
15390 |
|
PYFU2005 |
20 |
5 |
3.175 |
36 |
58 |
10 |
12 |
101 |
44 |
4 |
11680 |
20120 |
|
PYFU2010 |
20 |
10 |
3.175 |
36 |
58 |
10 |
12 |
117 |
44 |
3 |
9340 |
15800 |
|
PYFU2505 |
25 |
5 |
3.175 |
40 |
62 |
10 |
12 |
101 |
48 |
4 |
13220 |
26060 |
|
PYFU2510 |
25 |
10 |
4.762 |
42 |
64 |
12 |
15 |
145 |
50 |
3 |
17080 |
27830 |
|
PYFU3205 |
32 |
5 |
3.175 |
50 |
80 |
12 |
15 |
102 |
62 |
4 |
14950 |
34390 |
|
PYFU3210 |
32 |
10 |
3.969 |
50 |
80 |
12 |
15 |
162 |
62 |
4 |
19710 |
40590 |
|
PYFU3210 |
32 |
10 |
6.35 |
53 |
83 |
12 |
15 |
162 |
65 |
3 |
27610 |
46170 |
|
PYFU4010 |
40 |
10 |
6.35 |
63 |
93 |
14 |
20 |
165 |
70 |
4 |
40680 |
80500 |
|
PYFU4020 |
40 |
20 |
6.35 |
65 |
95 |
14 |
20 |
200 |
72 |
3 |
30470 |
56240 |
|
PYFU5010 |
50 |
10 |
6.35 |
75 |
110 |
16 |
25 |
171 |
85 |
4 |
46050 |
104250 |
